COMBIND™
COMBIND™ is a composition of 2 Aluminium cover sheets and a plastic core. It is a decorative panel used for external and internal architectural cladding. Not limiting its capabilities, it can also be used as partition, signage board, commercial vehicles and canopy.

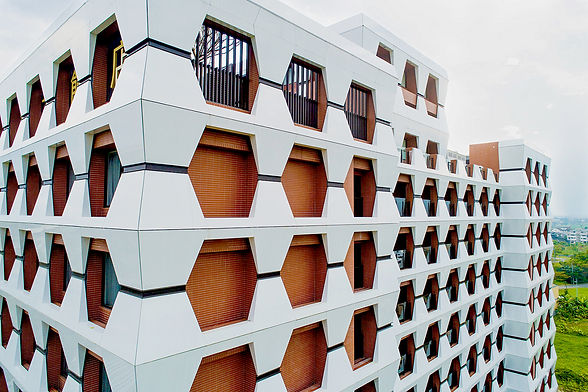

An external cladding using COMBIND™ not only act as a corporate image building, it also create an insulation barrier surrounding the building.
Its rigidity is comparable to aluminium solid sheet but it proves to be more economical in terms of cost.
Characteristics:
- Rigidity and durability
- Ideal low weight
- Weatherproof & UV resistant
- Flexibility to fabricate
- Remarkable Flatness
- Wide varieties of colours available
COMBIND™ offers wide selection of sizes, varieties of colour choices, high efficiency yet cost effective, easy to work with & well-engineered.
Panel Thickness |
4mm , 5mm , 6mm |
Panel Weight |
5.9KG / 7KG / 8.1KG |
Standard Width |
1220mm / 1500mm |
Maximum Width |
2000mm |
Maximum Length |
8000mm |
Thickness Deviation |
±0.2mm |
Length Deviation |
±3mm |
Width Deviation |
±2mm |
Diagonal Deviation |
±3mm |
Recycling
COMBIND™ strongly believes that fire safety & environmental protection are inseparable, and are crucial objectives, therefore the selected series of core materials are all eco-friendly & can be recycled.
COMBIND™ PRO
COMBIND™ PRO is a composition of 2 Aluminium cover sheets and a FR mineral filled core. It is a decorative panel used for external and internal architectural cladding. Not limiting its capabilities, it can also be used as partition, signage board, commercial vehicles and canopy. Having a FR mineral filled core, it transforms the panel to become a fire-resistant component. Thus achieving the Fire Classification of Class “O” under the PLS of TUV SUD PSB Singapore.
An external cladding using COMBIND™ PRO not only act as a corporate image building, it also create an insulation barrier surrounding the building.
Its rigidity is comparable to aluminium solid sheet but proves to be more economical in terms of cost.
Characteristics:
- Rigidity and durability
- Ideal low weight
- Weatherproof & UV resistant
- Flexibility to fabricate
- Remarkable Flatness
- Wide varieties of colours available
COMBIND™ PRO offers wide selection of sizes, varieties of colour choices, high efficiency yet cost effective, easy to work with & well-engineered.
Panel Thickness |
4mm , 5mm , 6mm |
Panel Weight |
7.6KG / 9.5KG / 10.9KG |
Standard Width |
1220mm / 1500mm |
Maximum Width |
2000mm |
Maximum Length |
8000mm |
Thickness Deviation |
±0.2mm |
Length Deviation |
±3mm |
Width Deviation |
±2mm |
Diagonal Deviation |
±3mm |
Recycling
COMBIND™ strongly believes that fire safety & environmental protection are inseparable, and are crucial objectives, therefore the selected series of core materials are all eco-friendly & can be recycled.
COMBIND™ PRIME
COMBIND™ PRIME is a composition of 2 Aluminium cover sheets and an A2 Graded mineral filled core. It is a decorative panel used for external and internal architectural cladding. Not limiting its capabilities, it can also be used as partition, signage board, commercial vehicles and canopy. With its upgraded content of FR minerals, A2 Graded core not only have remarkable fire-resistant component, it is also proven to be non-combustible & non-flammable.
An external cladding using COMBIND™ PRIME not only act as a corporate image building, it also create an insulation barrier surrounding the building.
Its rigidity is comparable to aluminium solid sheet but is more economical in terms of cost.
Characteristics:
- Rigidity and durability
- Ideal low weight
- Weatherproof & UV resistant
- Flexibility to fabricate
- Remarkable Flatness
- Wide varieties of colours available
COMBIND™ PRIME offers wide selection of sizes, varieties of colour choices, high efficiency yet cost effective, easy to work with and well-engineered.
Panel Thickness |
4mm , 5mm , 6mm |
Panel Weight |
7.6KG / 9.5KG / 10.9KG |
Standard Width |
1220mm / 1500mm |
Maximum Width |
2000mm |
Maximum Length |
8000mm |
Thickness Deviation |
±0.2mm |
Length Deviation |
±3mm |
Width Deviation |
±2mm |
Diagonal Deviation |
±3mm |
Recycling
COMBIND™ strongly believes that fire safety & environmental protection are inseparable, and are crucial objectives, therefore the selected series of core materials are all eco-friendly & can be recycled.
COMBIND™ Aluminium Honeycomb Panel
COMBIND™ Aluminium Honeycomb Panel is constructed by binding two aluminium sheets to an aluminium honeycomb core.
The perfect specifications allow a wide variety of applications and ensure a hassle free fabrication process. The distinctive features make COMBIND™ Aluminium Honeycomb Panel the ideal selection not just for outdoor usage such as wall cladding, roofing and shelters, but also perfect for interior beautification like interior cladding, ceilings, etc.
Total Thickness (T) |
10mm |
15mm |
20mm |
25mm |
Aluminium Front Sheet (A1) |
1.0mm |
1.0mm |
Aluminium Back Sheet (A2) |
0.7mm |
1.0mm |
Panel Weight (kg/m2)(1.0mm/0.7mm) |
5.8kg |
6.1kg |
7.1kg |
7.4kg |
Standard Width |
1200mm – 1500mm |
Maximum Width |
2000mm |
Maximum Length |
8000mm |
Thickness Deviation |
±0.2mm |
Length Deviation |
±3mm |
Width Deviation |
±2mm |
Core |
AluminiumHoneycomb |
Cell Size(in)(mm) |
3/8”_9.52mm |
Recycling
COMBIND™ strongly believes that fire safety & environmental protection are inseparable, and are crucial objectives, therefore the selected series of core materials are all eco-friendly & can be recycled.
